Static Charge Redistribution Simulation

This program implements the software described by the paper Computer Model Clarifies Spontaneous Charge Redistribution in Conductors. It currently builds for Windows only, though porting to other operating systems should be easy. The program is coded in C99 and builds with GCC, CLANG, or Microsoft build tools. CLANG produces the best optimization, at least for an AMD Ryzen gen 1 processor.


The program input is a graphic file containing a 2-dimensional drawing of a conductor. Save the file in BMP format, using white background with black for the conductor portion. Suggested dimension is width 1600 pixels and height 1200 pixels. The included sample BMP graphic files were created using Microsoft Paint.


Execute the program with no command line to see a description of the required and optional parameters, along with default values:

staticCharge 1.0

use: staticCharge [options]
  bmp=<file path>      get conductor shape from this black on white image
  charges=n            add n charges to conductor interior (default 500)
  chargeloc=x,y        BMP file coordinate for adding charges (default: center)
  chargesperpixel=f    density of added charges, default 1.00
  pngfilter=n          write a png file every n cycles (default: 1B/(chargecount^2)
  constant=f           set constant to f (default 0.005)
  fieldalways          field lines for all PNGs, otherwise last only
  fieldonly            plot the field lines and then exit
  markmaxfield         mark surface position of max field when drawing field lines
  periodicpngs         write PNG file snapshots periodically (to observe progress)
  fieldradius=n        radius multiple for field line start (default 10)
  fieldlines=n         number of field lines to draw (default 100)
  restart=<file path>  read charge positions from restart file
  threads=n            number of threads (default=0, one thread per core)
  color1=r,g,b         color for background, default 0,0,0
  color2=r,g,b         color for conductor, default 0,127,0
  color3=r,g,b         color for charge, default 255,0,0
  color4=r,g,b         color for field line, default 70,70,70
  color5=r,g,b         color for markmaxfield, default 0,200,200


The only required parameter is bmp=, which points to the input graphics file.

The number of charges defaults to 500, though 1000 or more works well. The included examples use 1000 charges.

One challenge for the program is placing the initial charges. The initial charges must lie in the interior of the conductor. The program assumes the center point of the graphic is part of the conductor interior. If this is not true, use option chargeloc=x,y to identify an interior point for adding charges. The program will add charges using a series rectangles with increasing size, ignoring points that do not fall in the interior. Option chargesperpixel=f can be used to change the initial charge density default of 1.0 charges per pixel.

Option pngfilter=n controls the frequency of several periodic processing tasks, one of which is the writing of PNG snapshot files. The default value of this option can be changed for debugging. The PNG snapshot files allow the charge movement progress to be monitored as the program runs. Use option periodicpngs to enable the generation of PNG snapshot files.

Option fieldradius=n controls how far away a test charge is placed when the program generates field lines. The default value of 10 is a good compromise between the ideal value of infinity and a smaller value that gives reasonable accuracy and fast execution time.

Option  constant=f. Instead of using the actual physical constant for the Coulomb's law calculation along with a modeled conductor size scale, the program merges all the constants into a single value as a compute optimization. This option allows the single constant to be changed. The default is acceptable for many cases, including all the included sample input files.

Option threads=n controls the number of threads the program will use for parallel computation of the force on each charge. Default is one thread per processor core. A single instance of the program usually won’t use 100% of the processor because only the force calculation is multi-threaded. The shorter operation of updating the charge positions is single threaded.

When the program starts, it converts the BMP file to vector format by invoking the potrace.exe utility. It then reads the vector version of the file and creates the conductor model.

The simulation can run for several hours. Press any key to see a dump of progress monitoring counters. If command line option periodicpngs is in effect, periodic PNG progress files will be written every few seconds.

The program will stop automatically when charge movement drops below a threshold. When the program stops, a PNG file with field lines is written to the output directory.

Press Ctrl+C to stop the program early. The program will write a PNG file with field lines for the current state of the model.

While using the snapshot PNG files to monitor the charge distribution progress is useful for debugging, it does not accurately reflect electron movement in a read conductor. Only when the model reaches equilibrium do its charges match the behavior of electrons in a conductor. When the charges in this simulation are redistributing, a charge can quickly move across the entire length of the conductor. We know this doesn’t happen in real conductors. For example, when an electrical pulse travels over miles of wire at the speed of light, no single electron moves from one end of the wire to the other at the speed of light. So while it is fun to watch the motion of the charges in the simulation, it is important to remember real electrons don’t move this way.

Another difference between this model and a real conductor is that the model is 2D and a real conductor is 3D. The 2D conductors in the simulation represent a slice of a 3D conductor that extends indefinitely. A 2D circle model corresponds a 3D cylinder of infinite length. A 2D triangle model corresponds to a 3D prism of infinite length.



09/30/2019 version 1.0

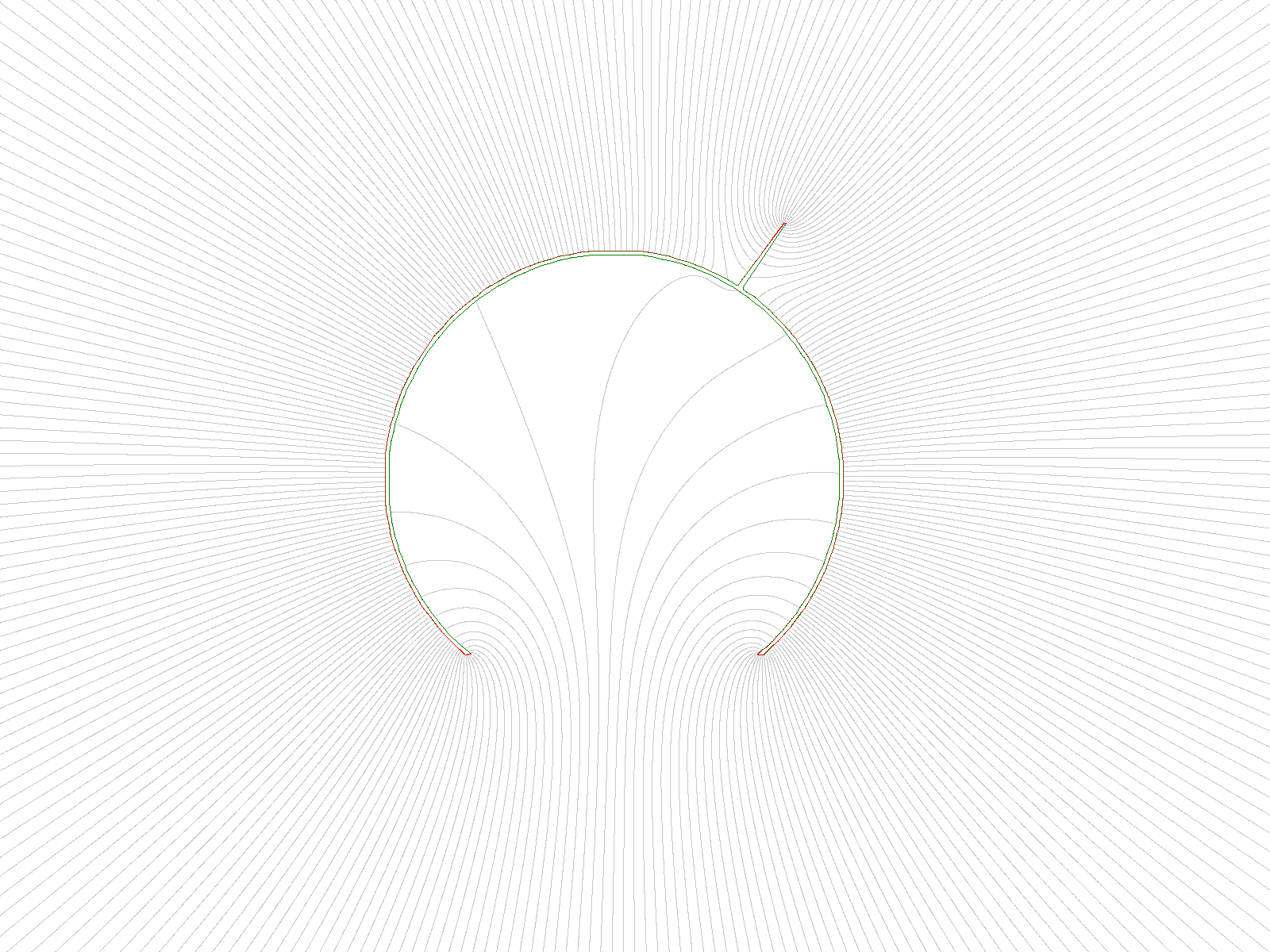

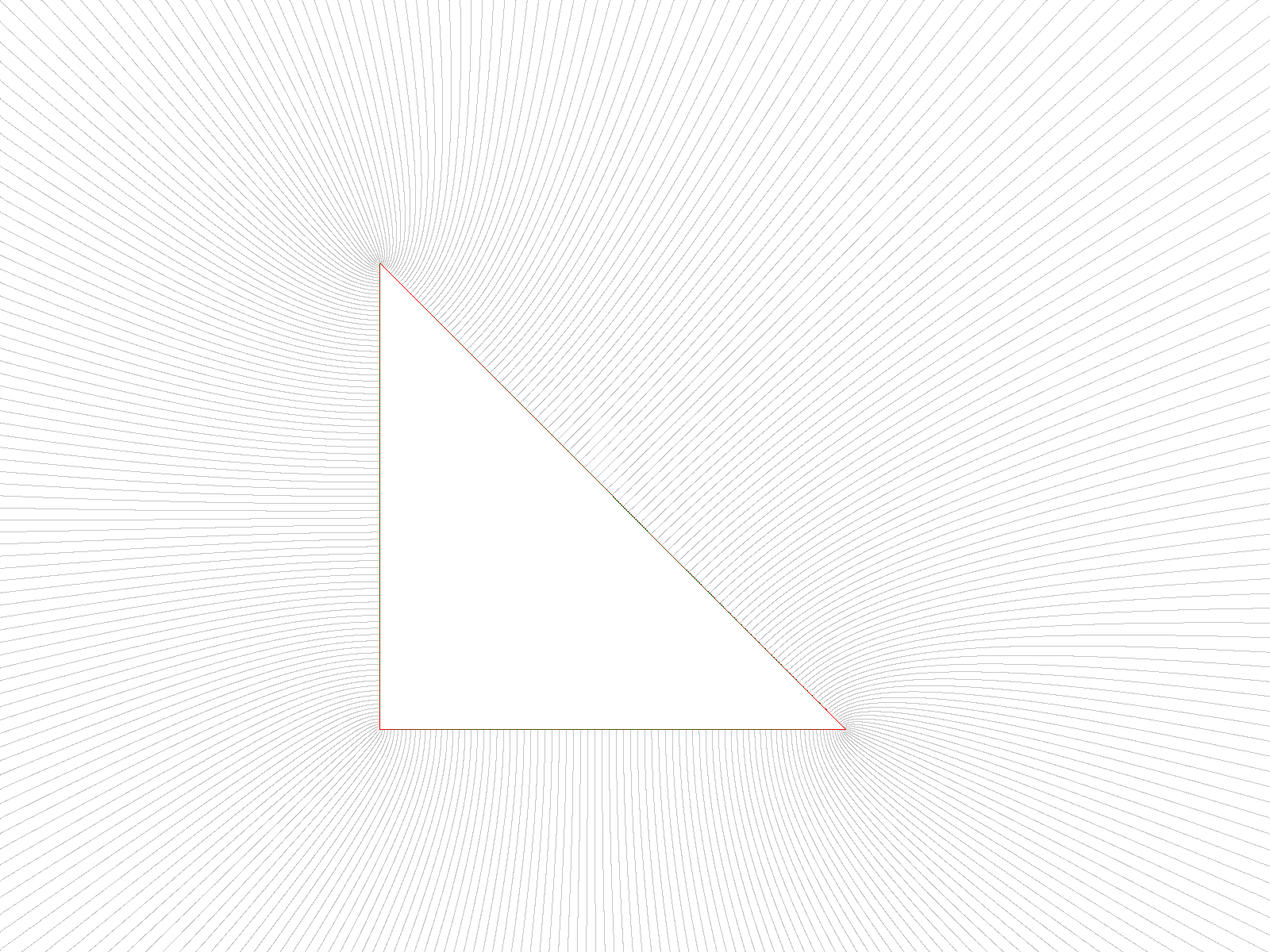

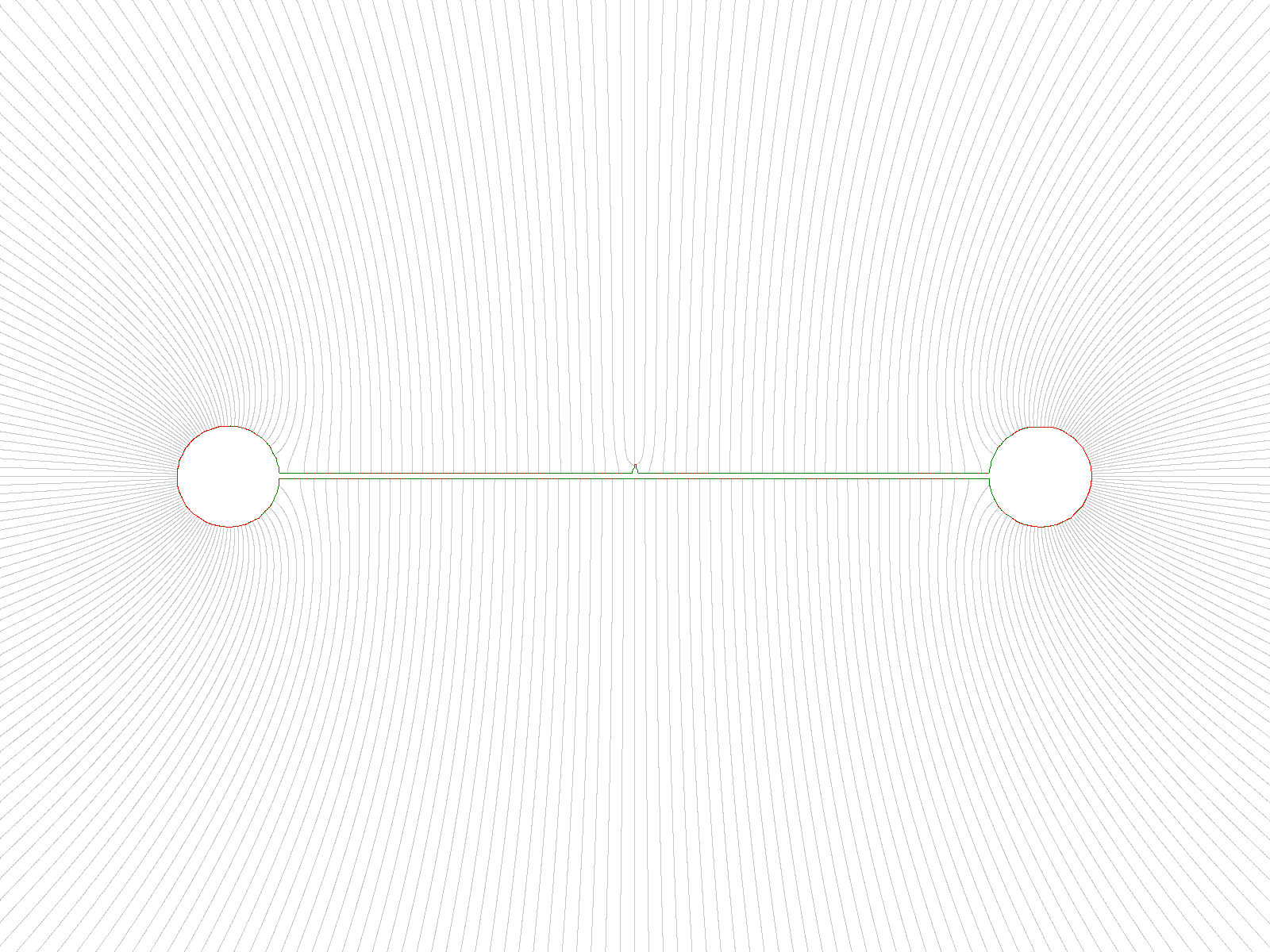

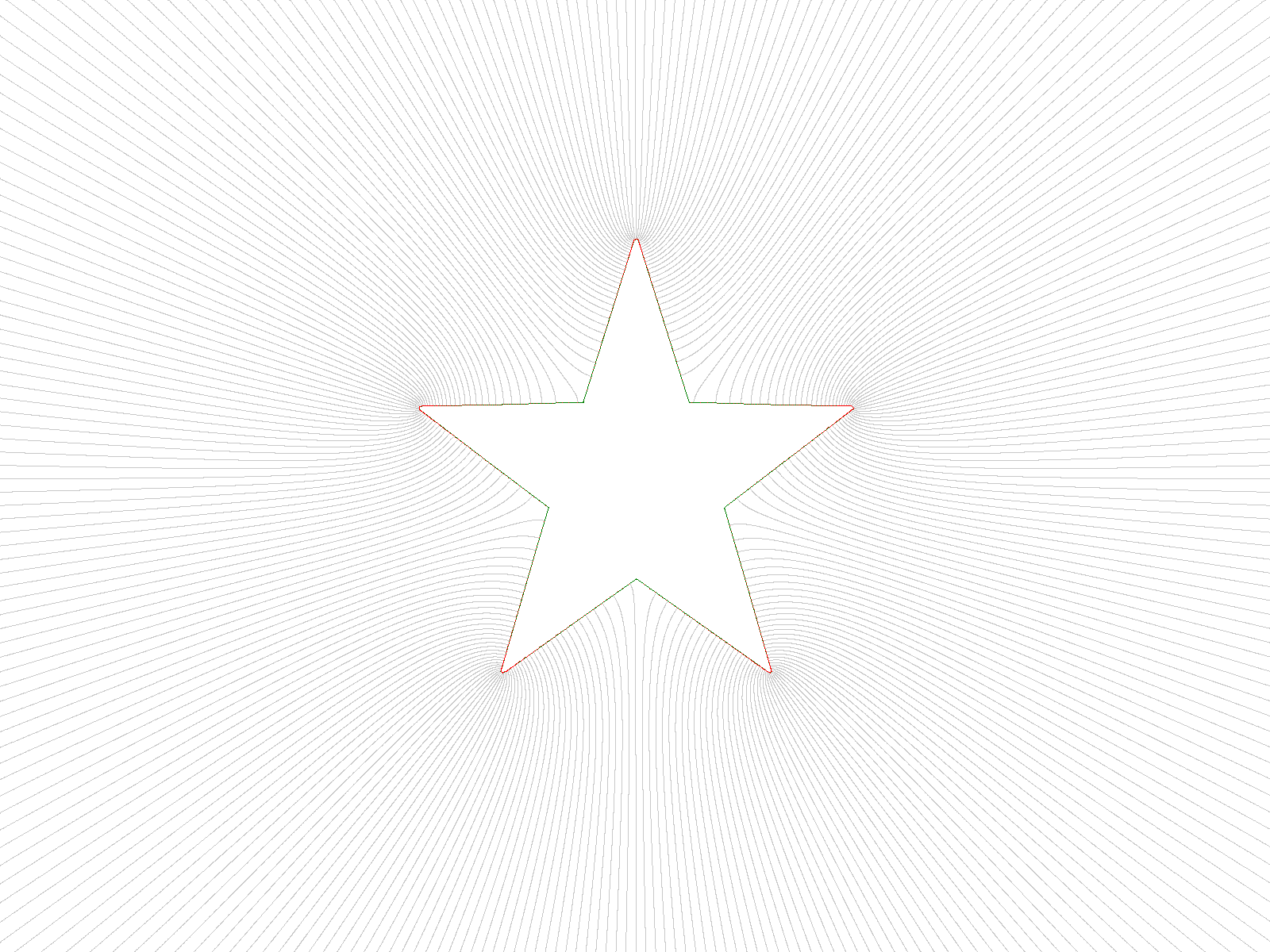

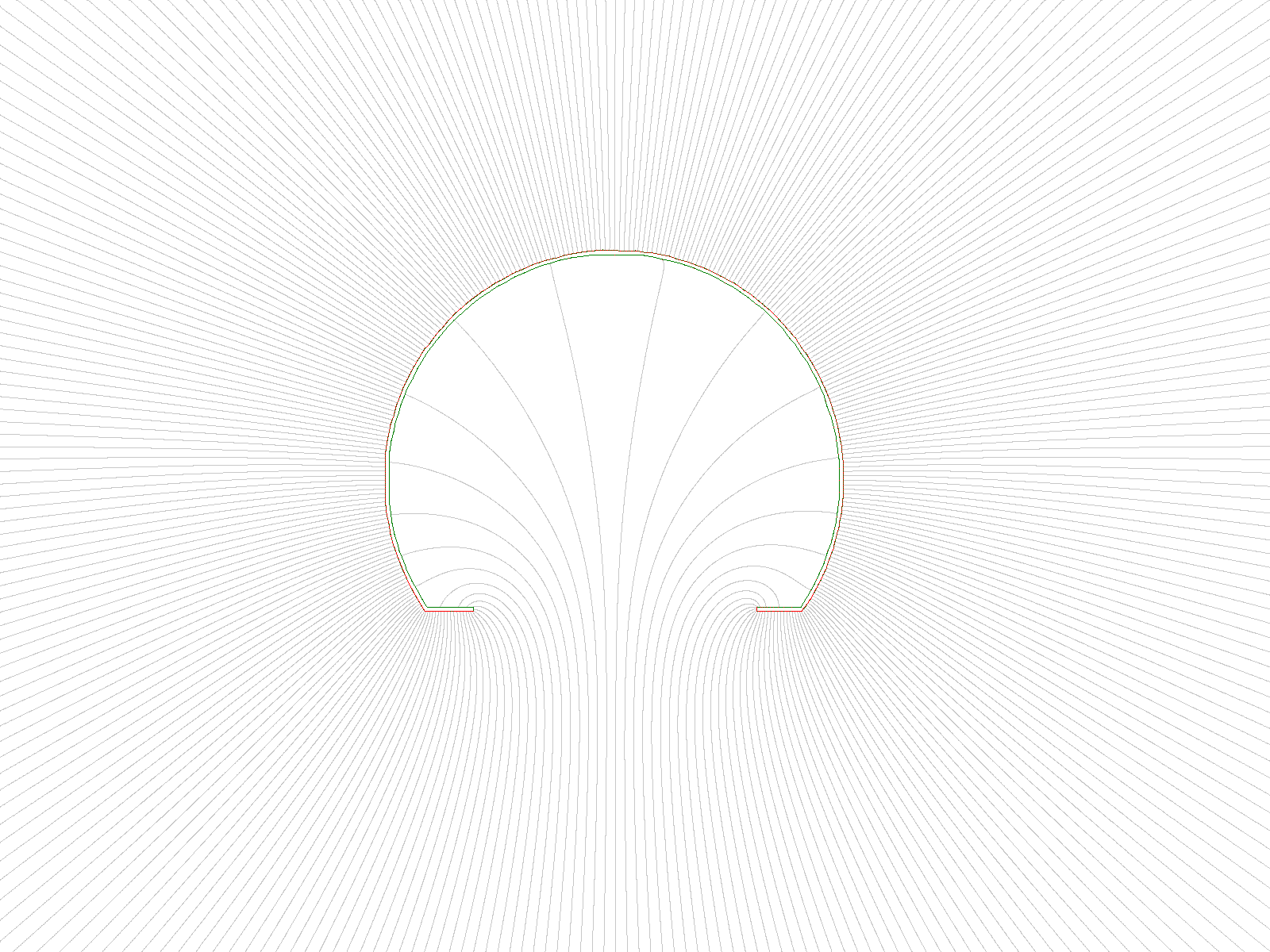

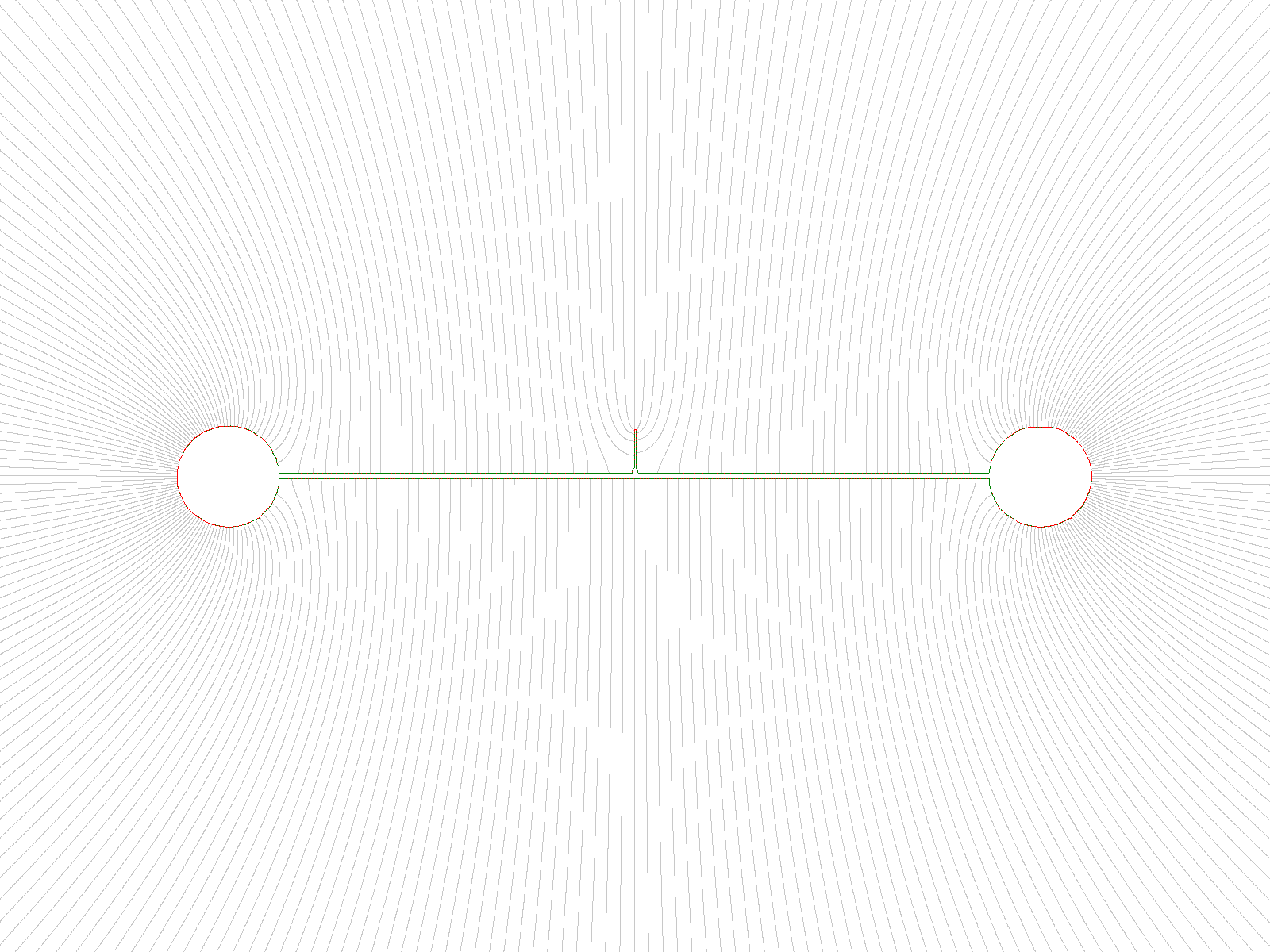

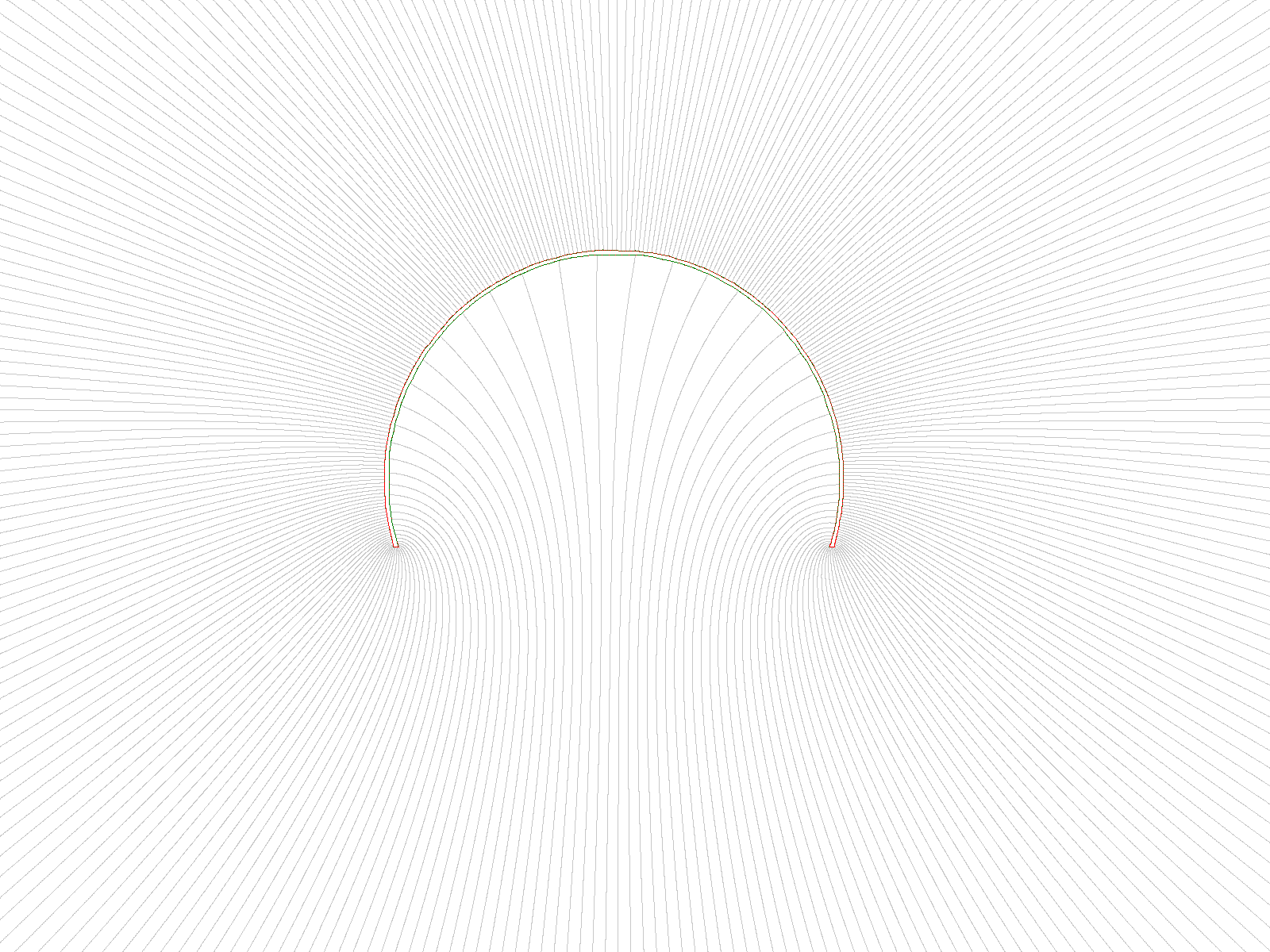

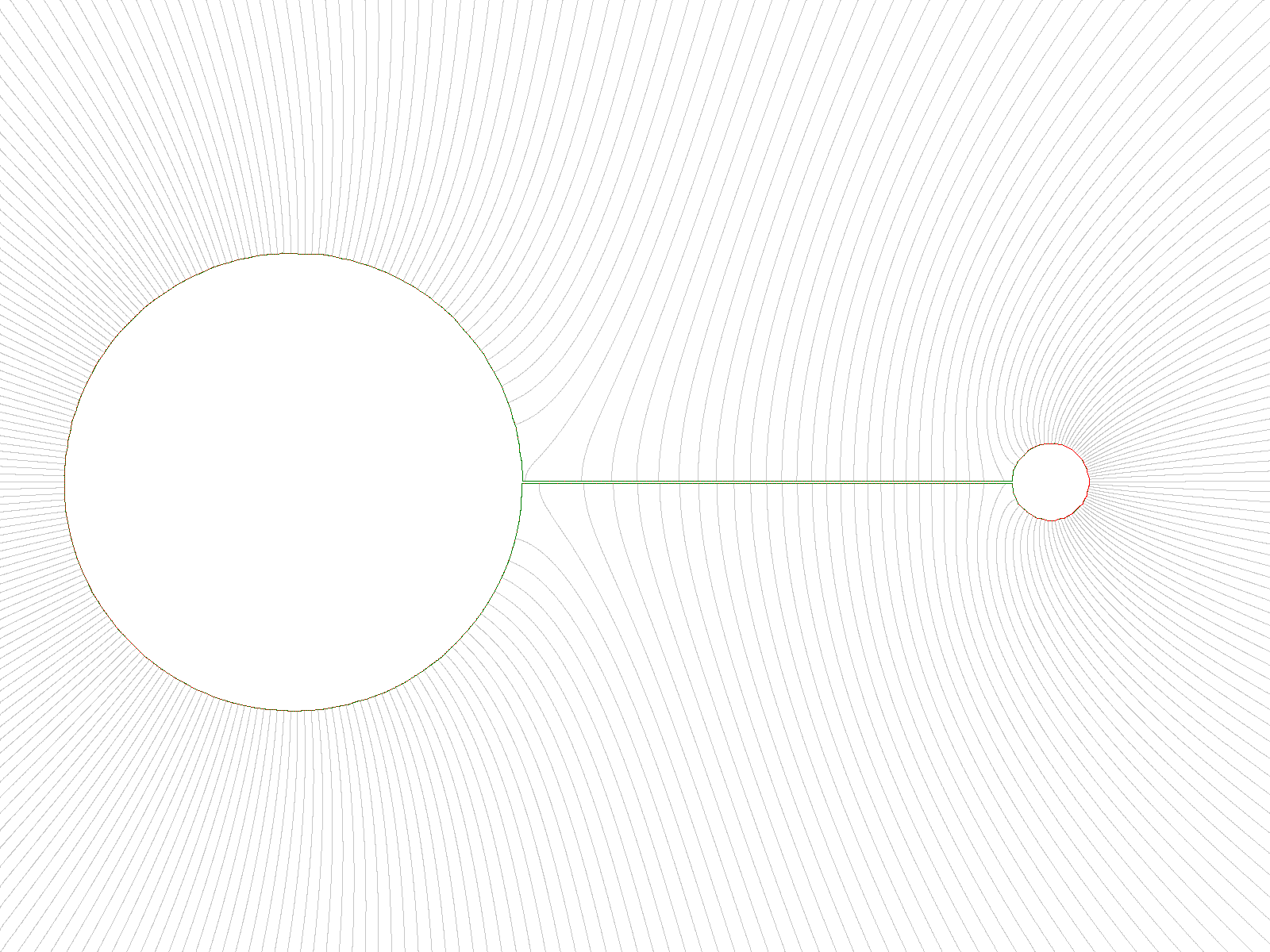

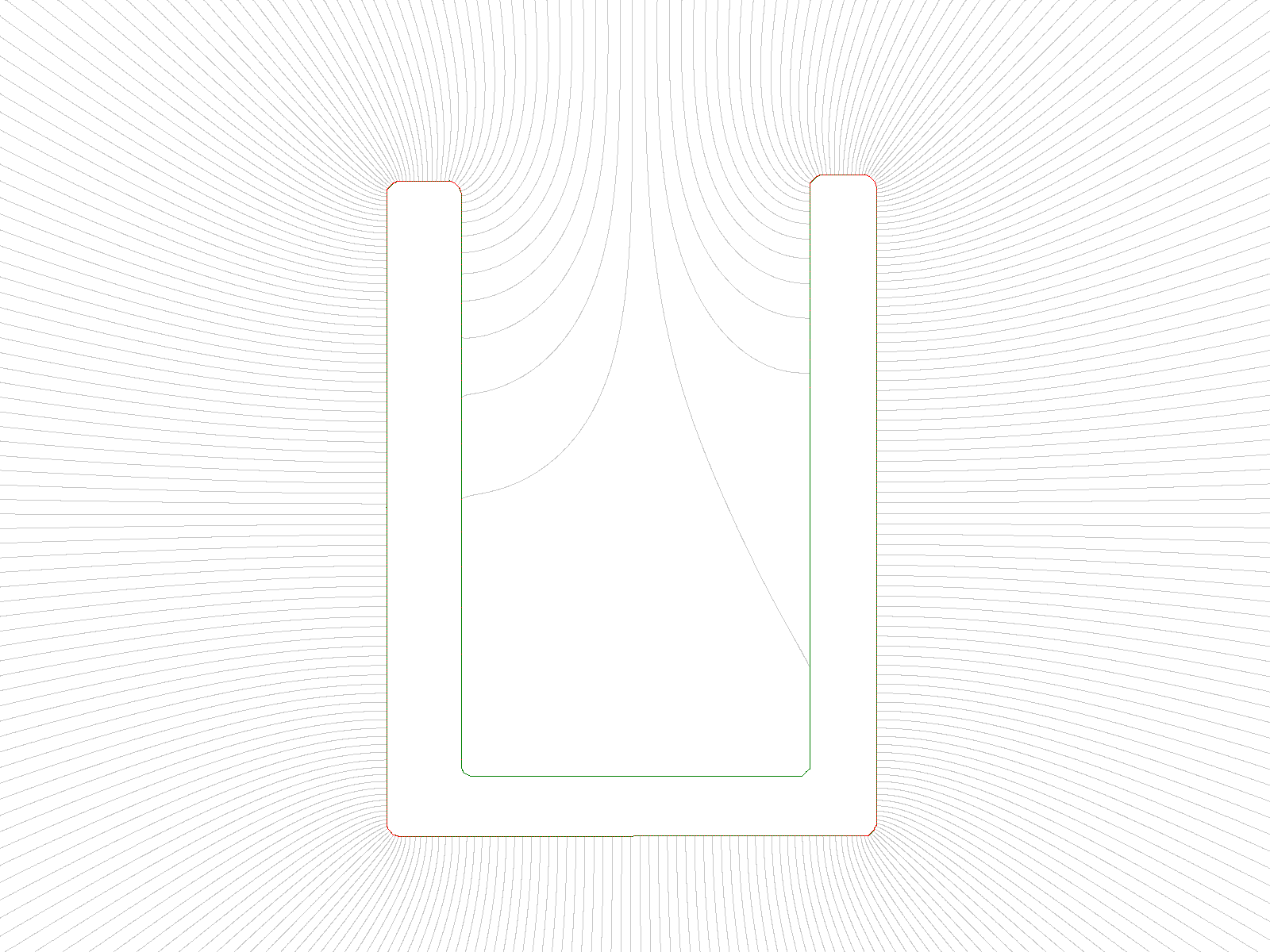

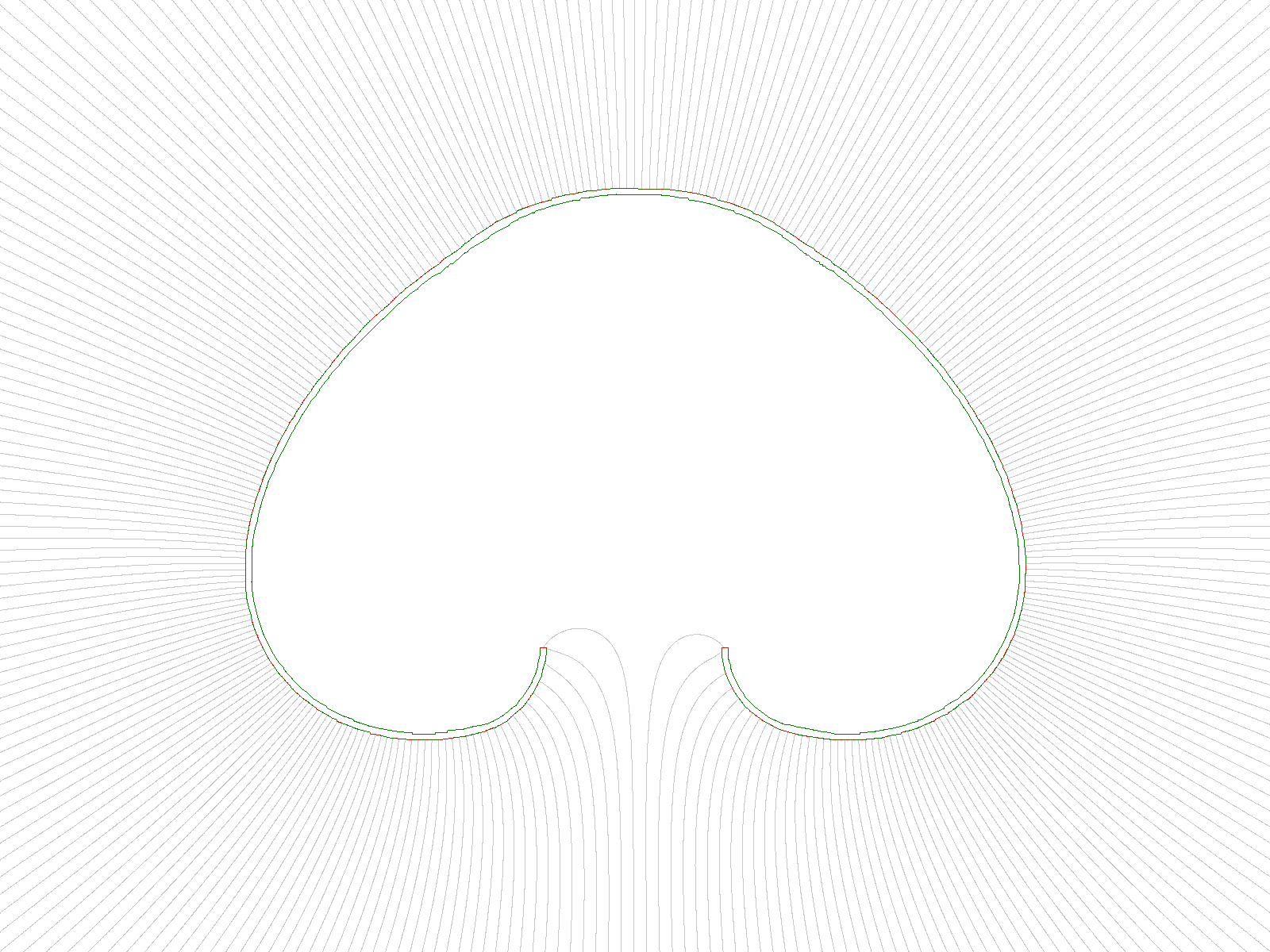

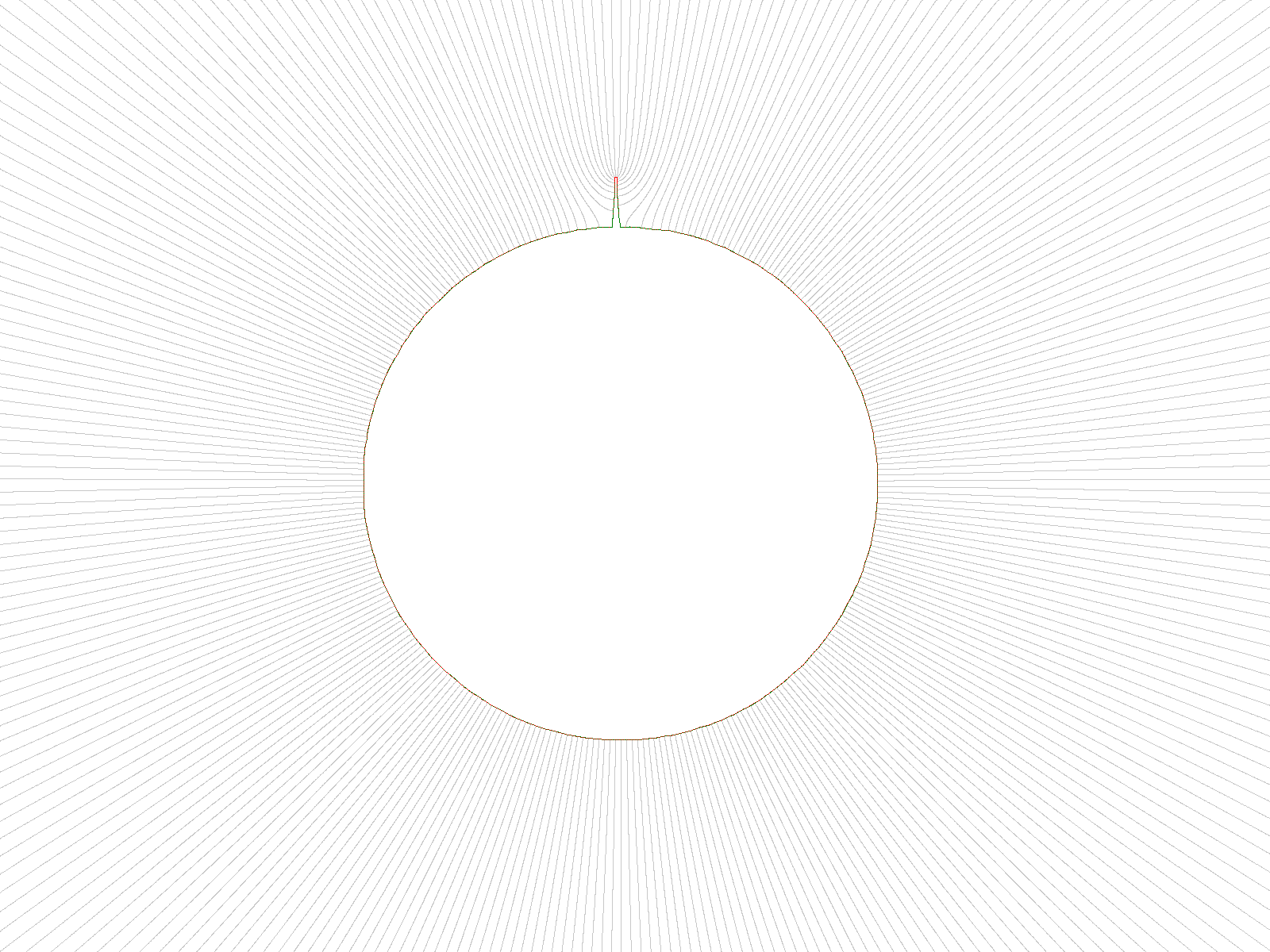

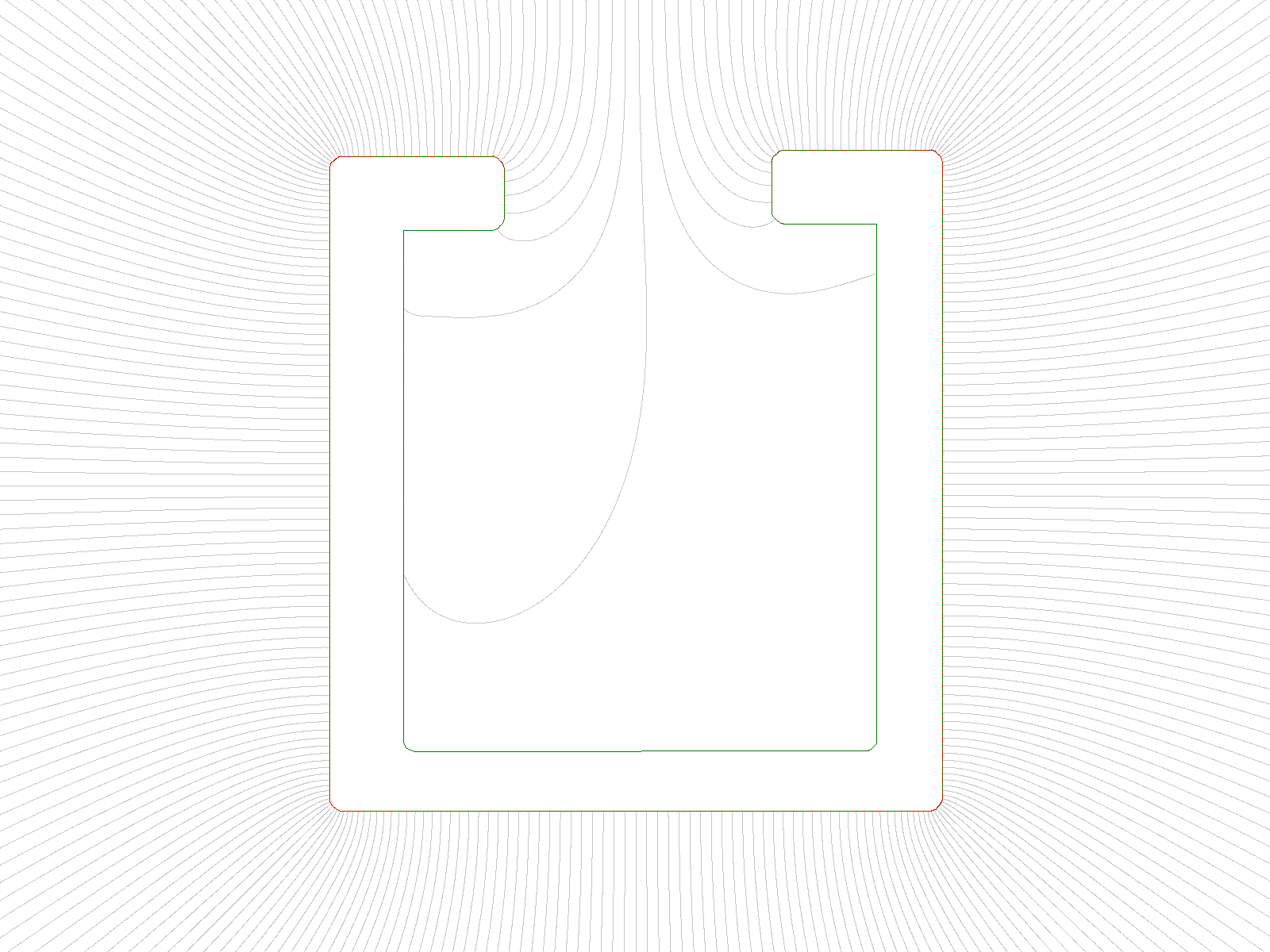

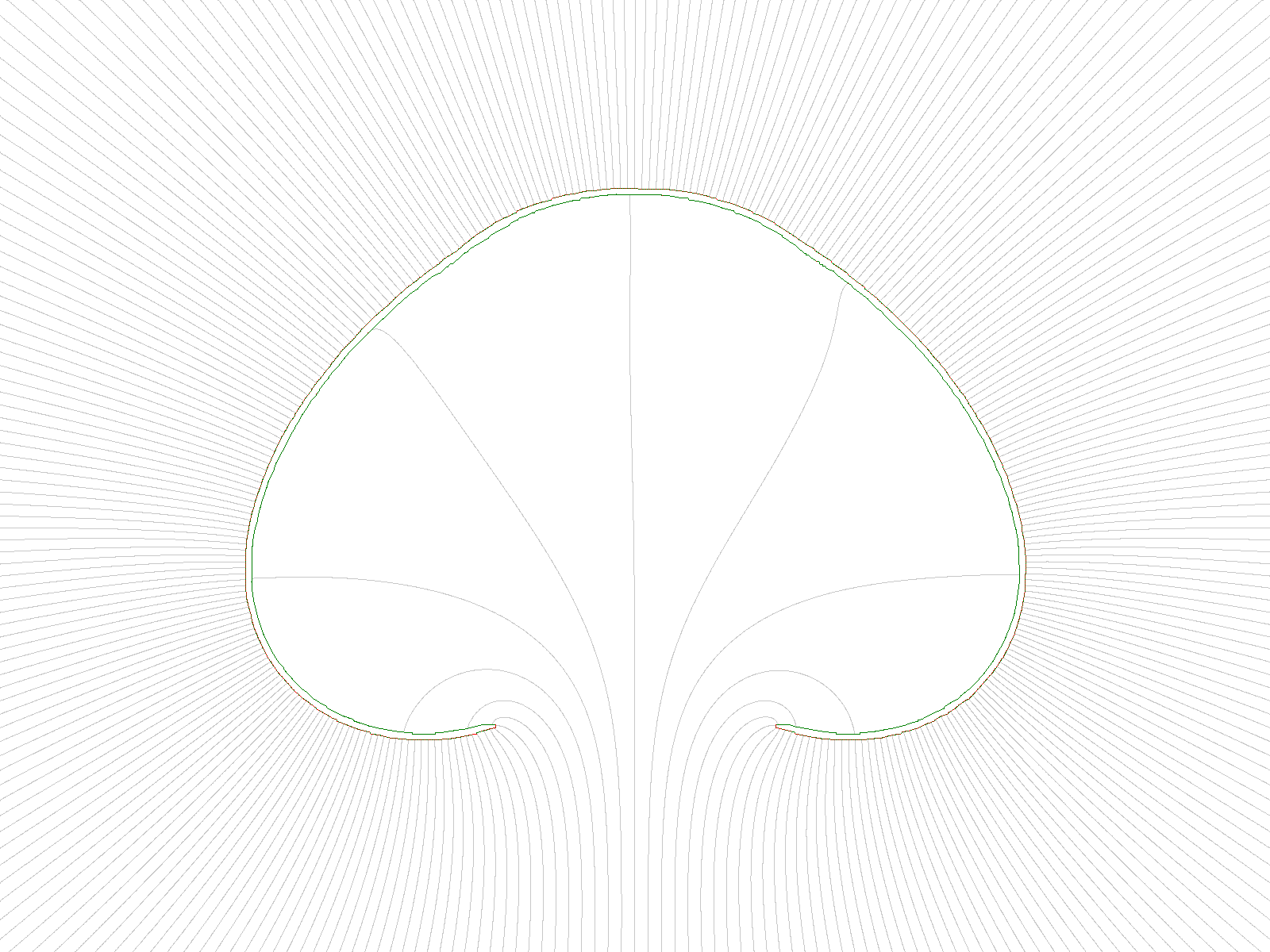

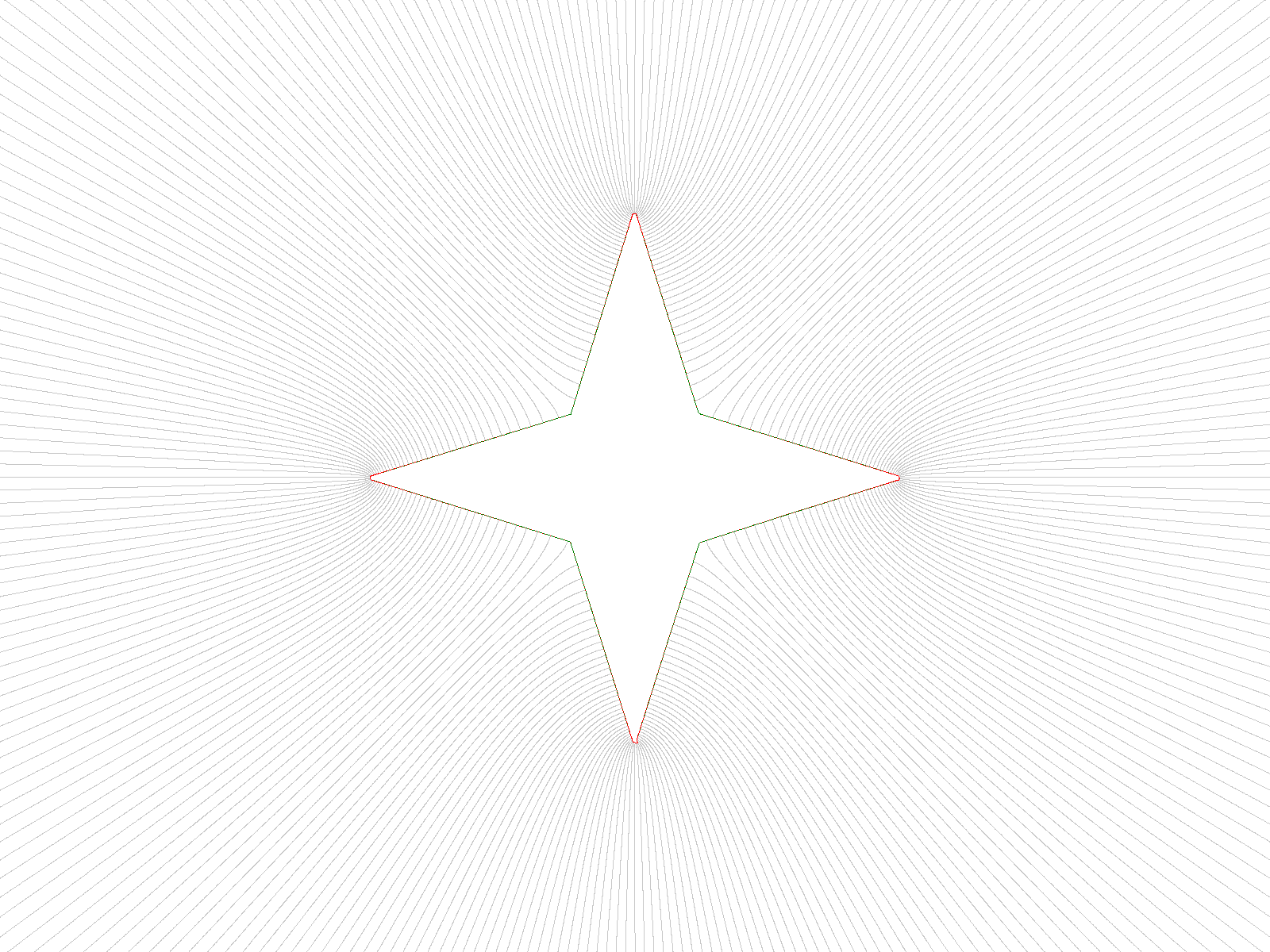

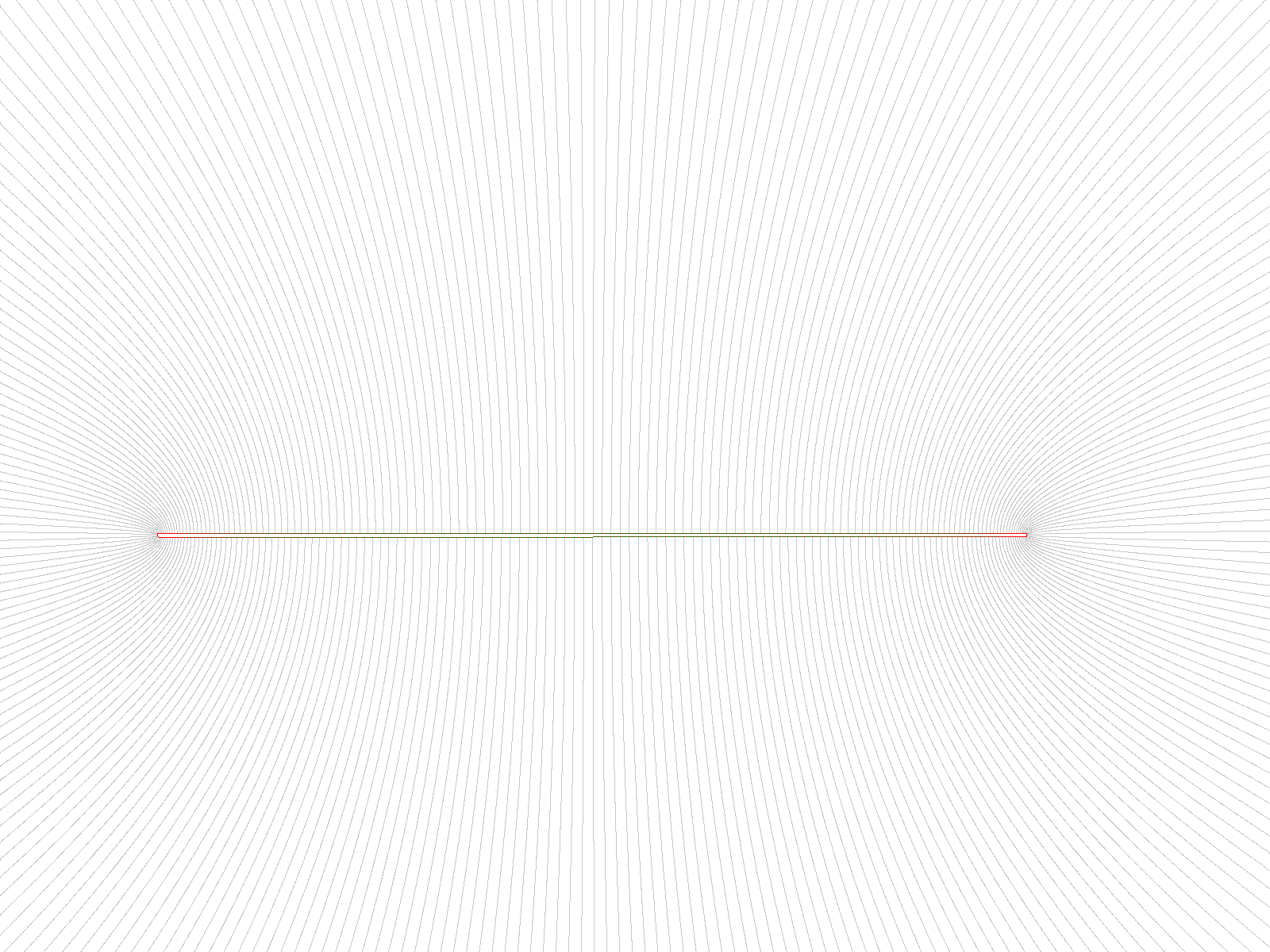

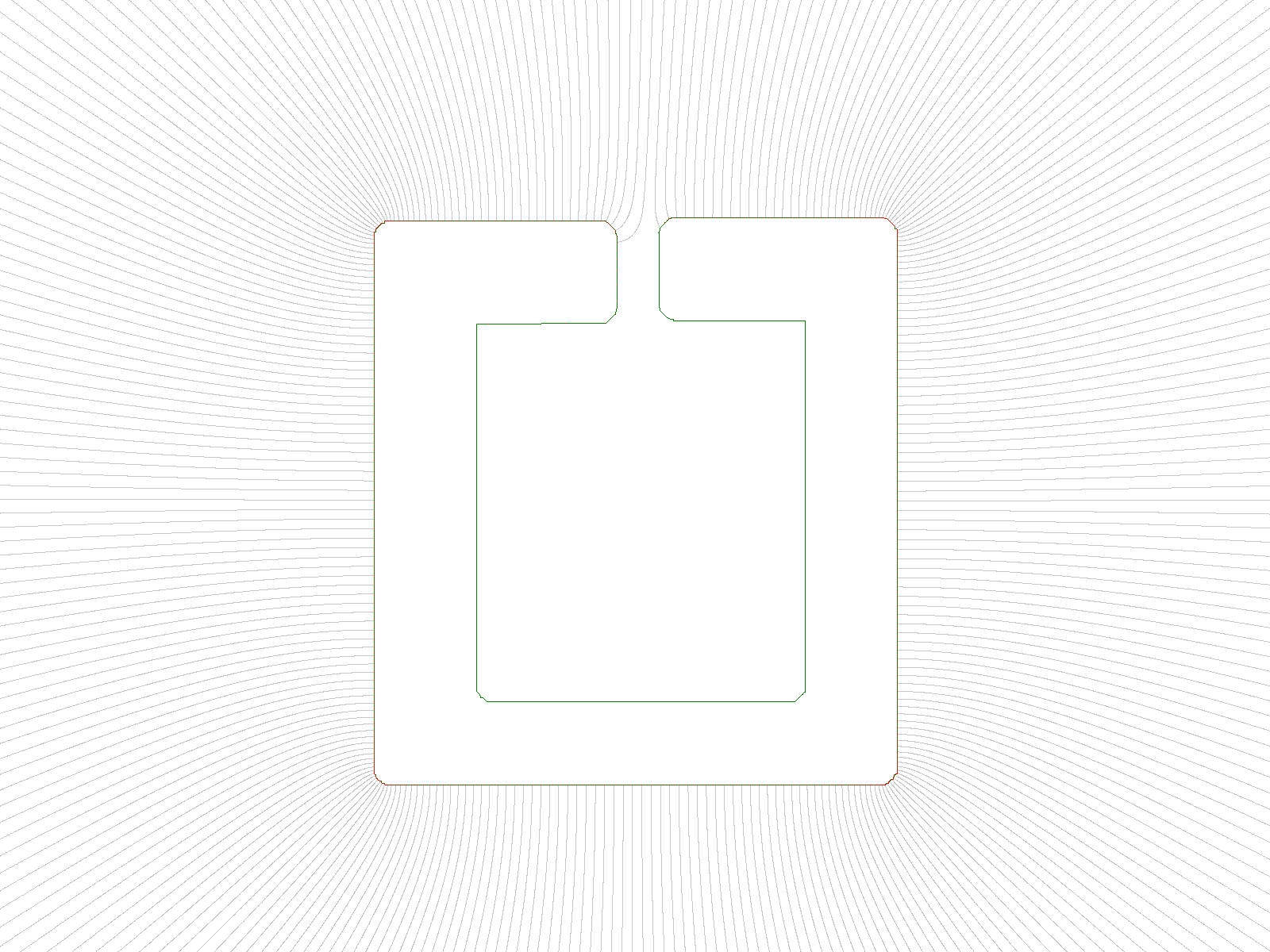

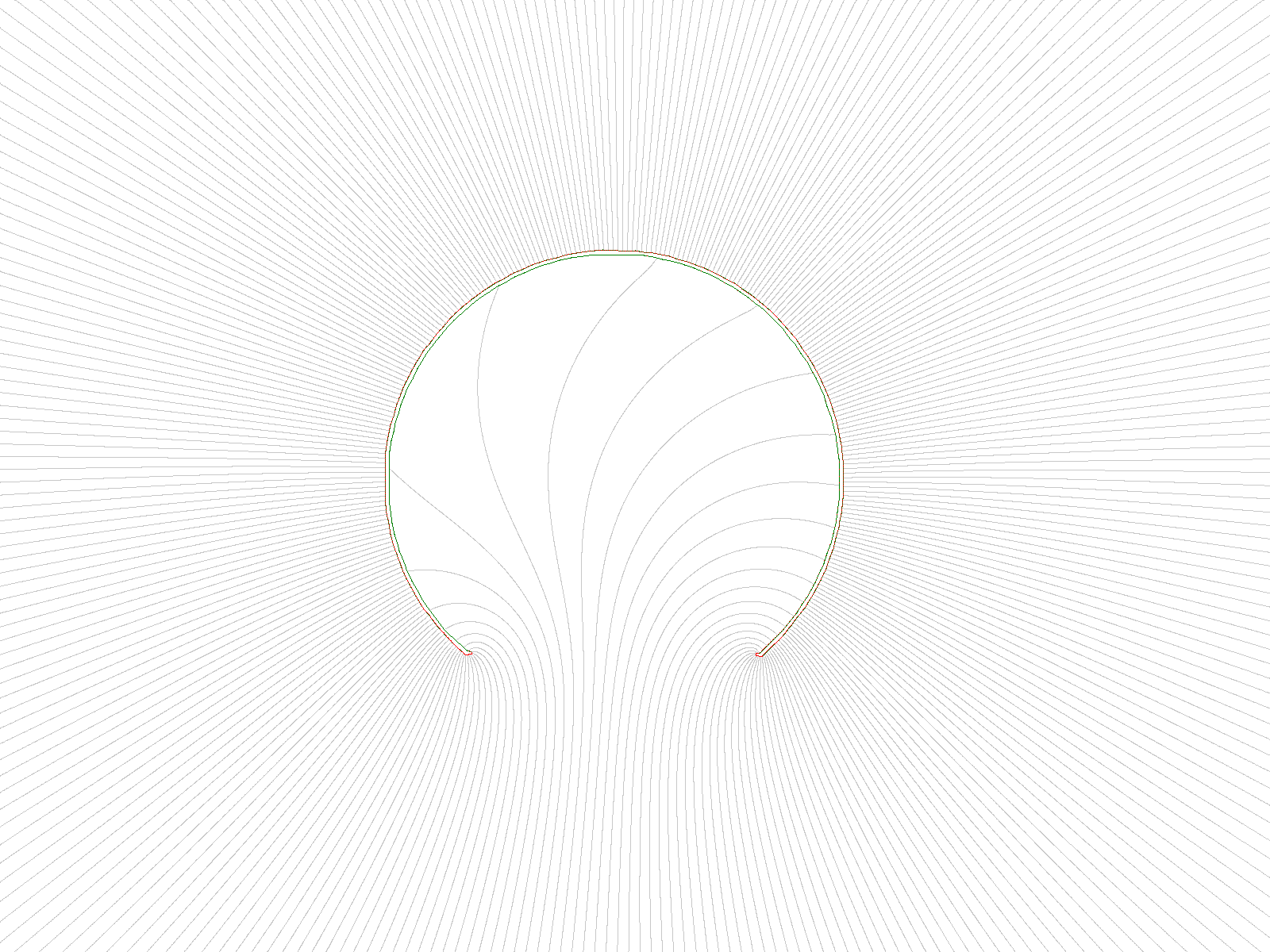

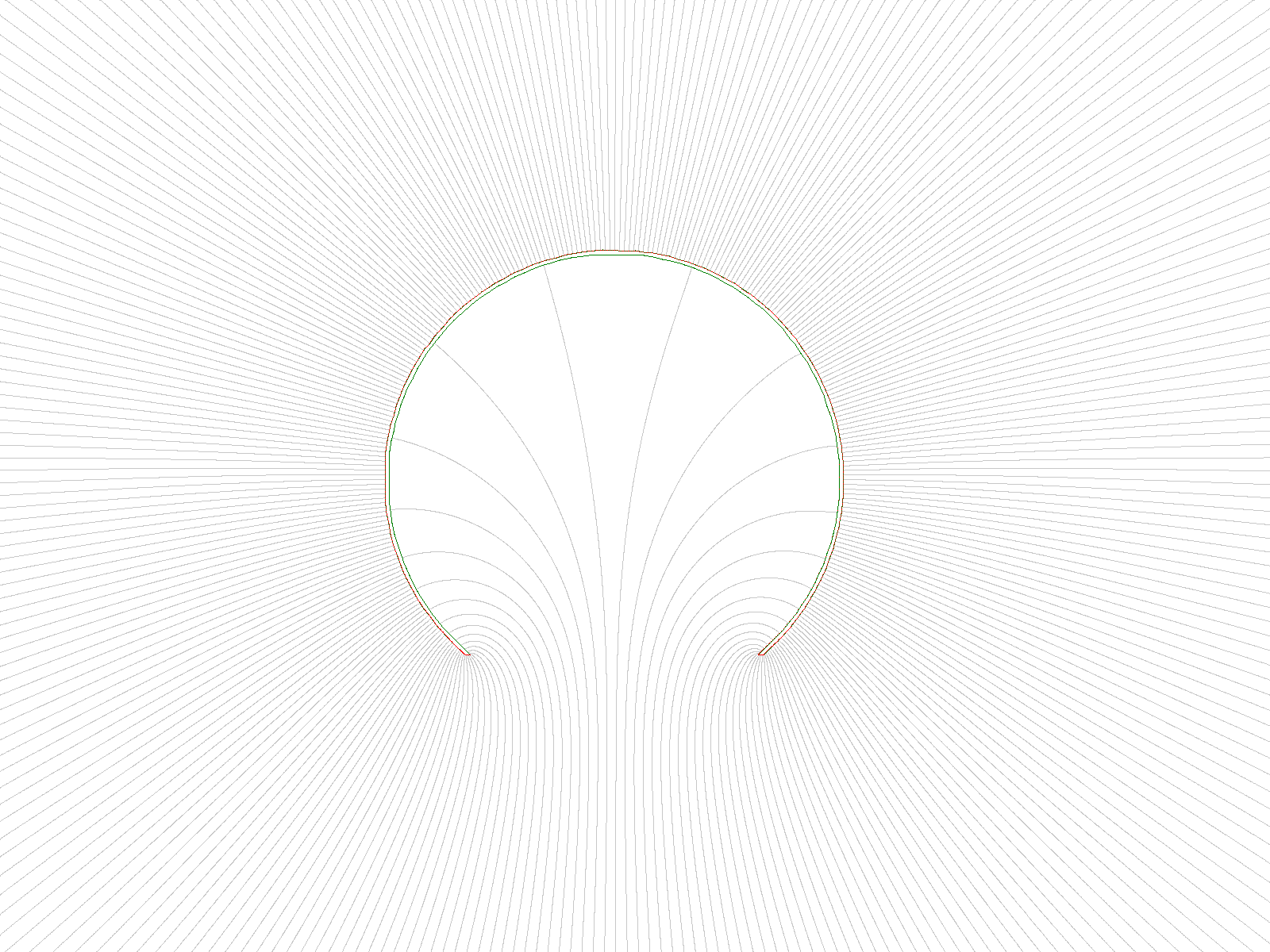

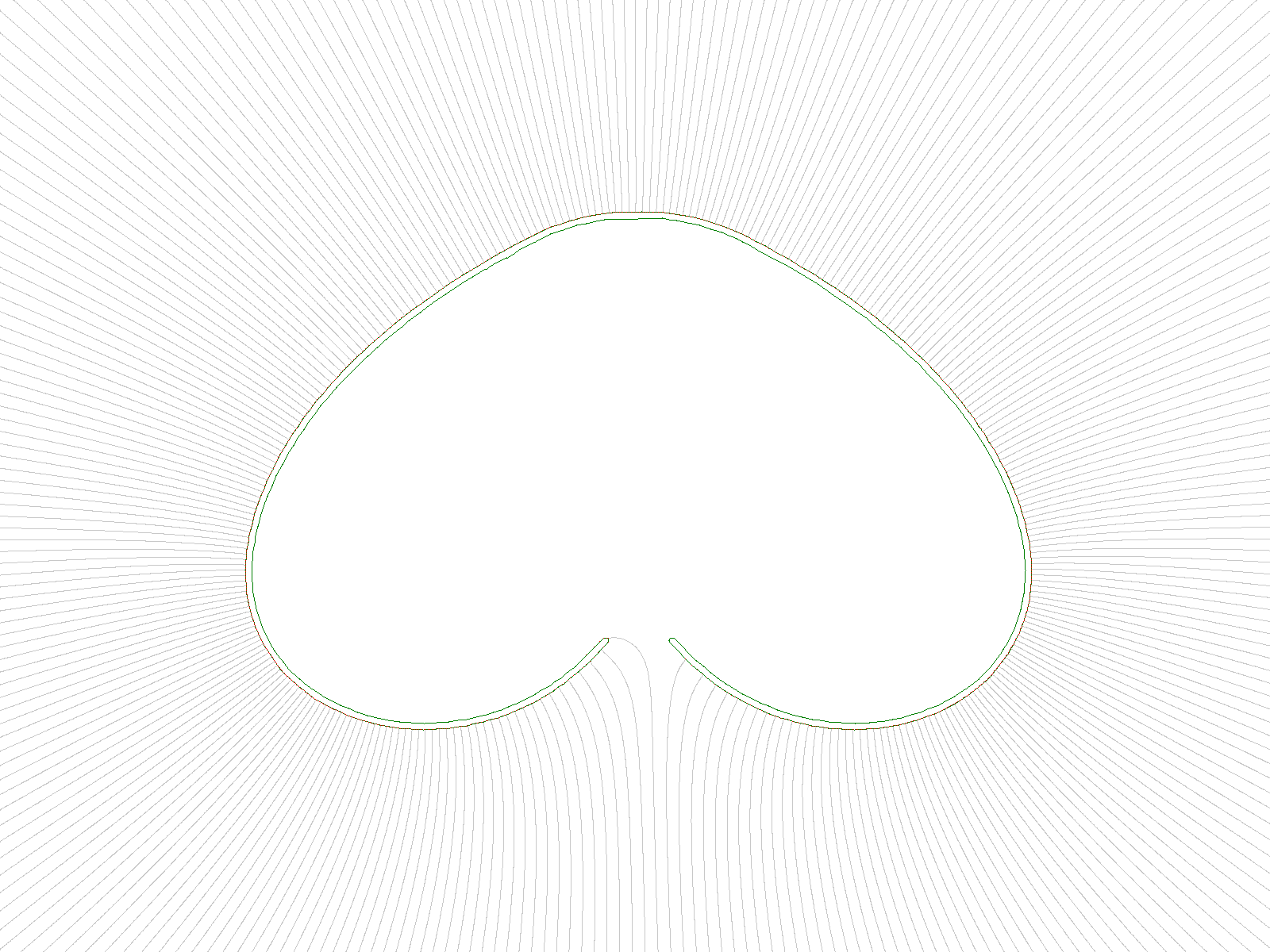

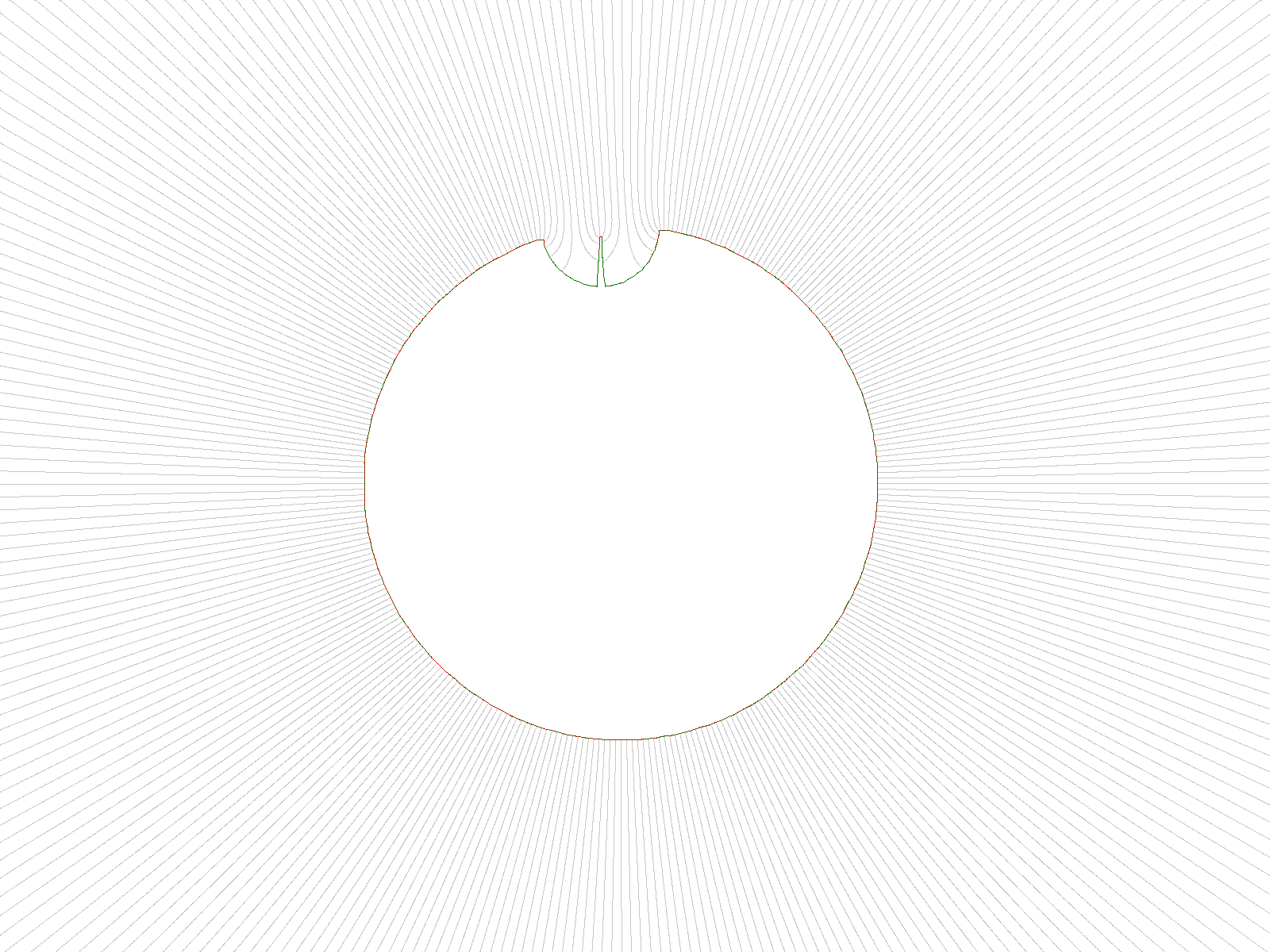

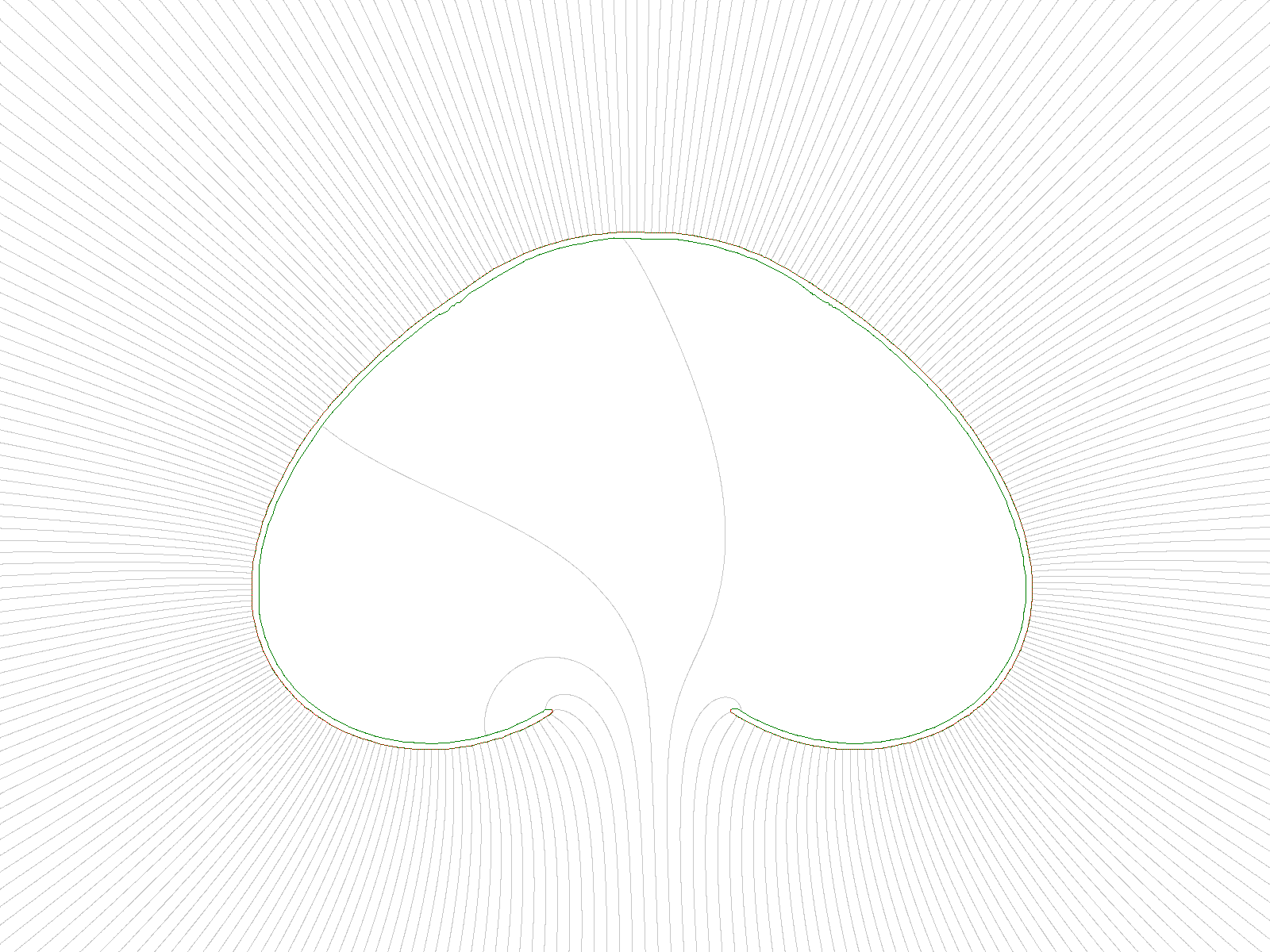

Sample output
